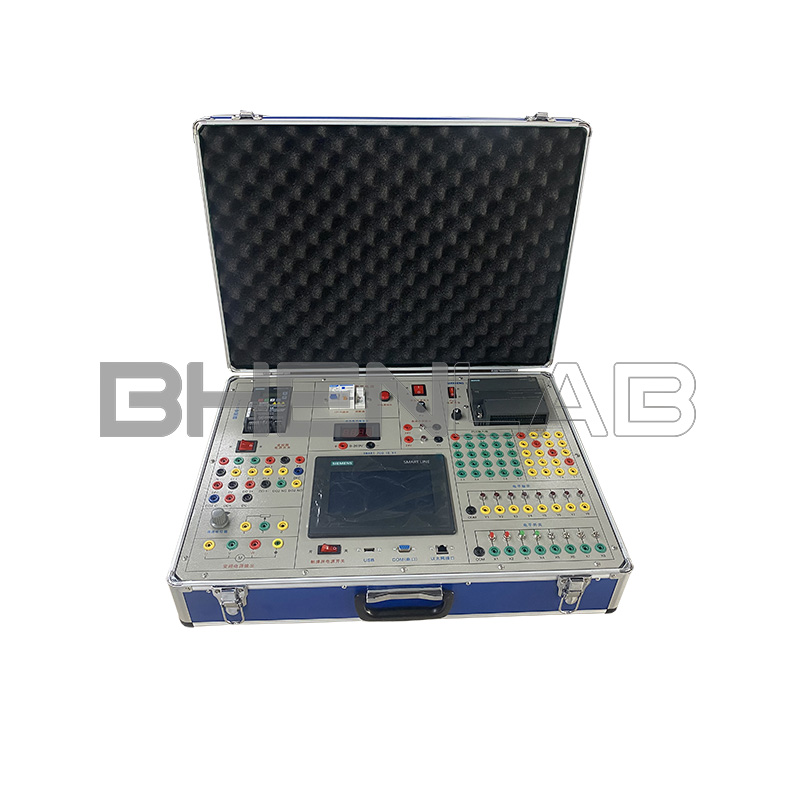

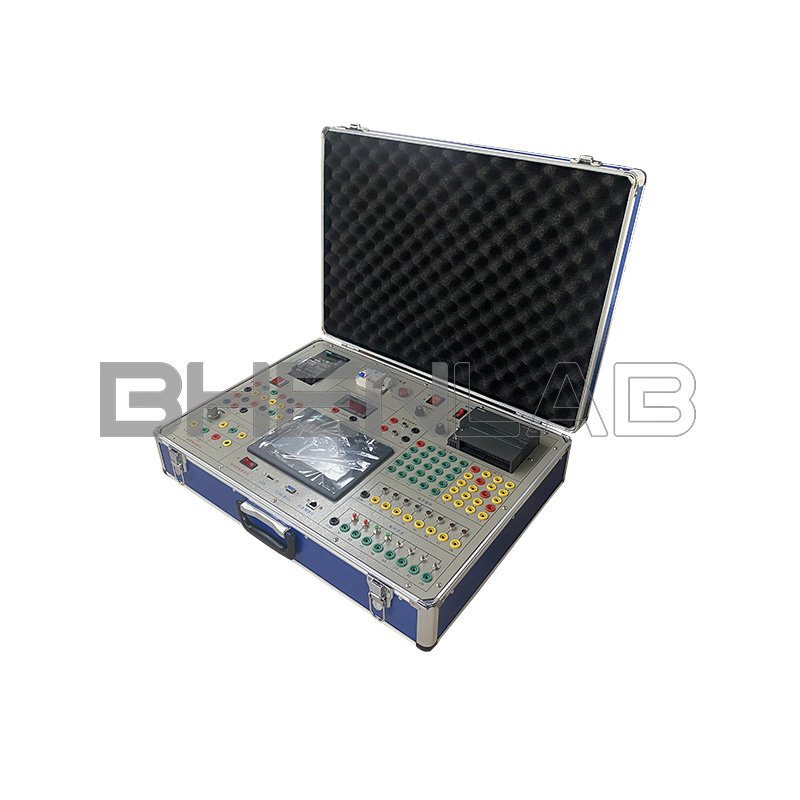

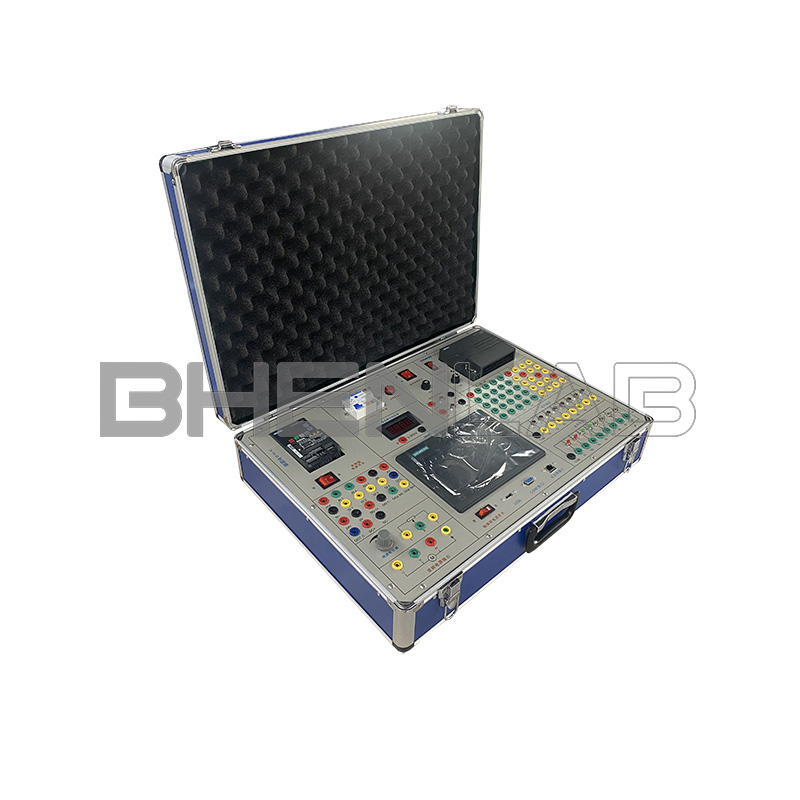

I. Main Features:

1. Modular design: In the host module, all input and output ports are connected to the experimental board via wires. Each experimental module has independent input, output, and common terminals. Users can easily expand their own modules.
2. DC motors, relays, and sensors are physical products, which enhance the authenticity and practicality of the experiments.
3. Equipped with MCGS industrial control configuration software, it can intuitively carry out PLC basic instruction exercises, multiple PLC practical application simulation experiments and physical experiments. All experiments are dynamically tracked with configuration bar charts, and the experimental objects are vivid, close to the actual application of industrial sites. Through the training of this device, students can quickly adapt to the actual operation on site.
4. Here, students can understand and master the structure and principle of the inverter, the installation of the inverter and the use of interface terminals, the communication between the inverter and the PC, the communication between the inverter and the touch screen, the setting of the inverter’s own parameters, and the setting and optimization of motor operating parameters (acceleration, deceleration, speed change, torque control) in the inverter.
   When the program debugging is completed, the touch screen can be used alone to control the frequency conversion system. The touch screen provides a graphical human-machine interface, which can change the inverter parameters and control the operation of the inverter.

II. Technical Parameters:

1. Input power supply: Three-phase four-wire: ~220V±10% 50Hz, output power supply 24V, 2A.
2. Working environment: Temperature -10℃~+40℃, relative humidity <85% (25℃), altitude <4000m.
3. Safety protection: This experimental device is equipped with a leakage protection switch, which has functions such as automatic power cut-off for leakage voltage and leakage current, etc. It meets national safety standards.

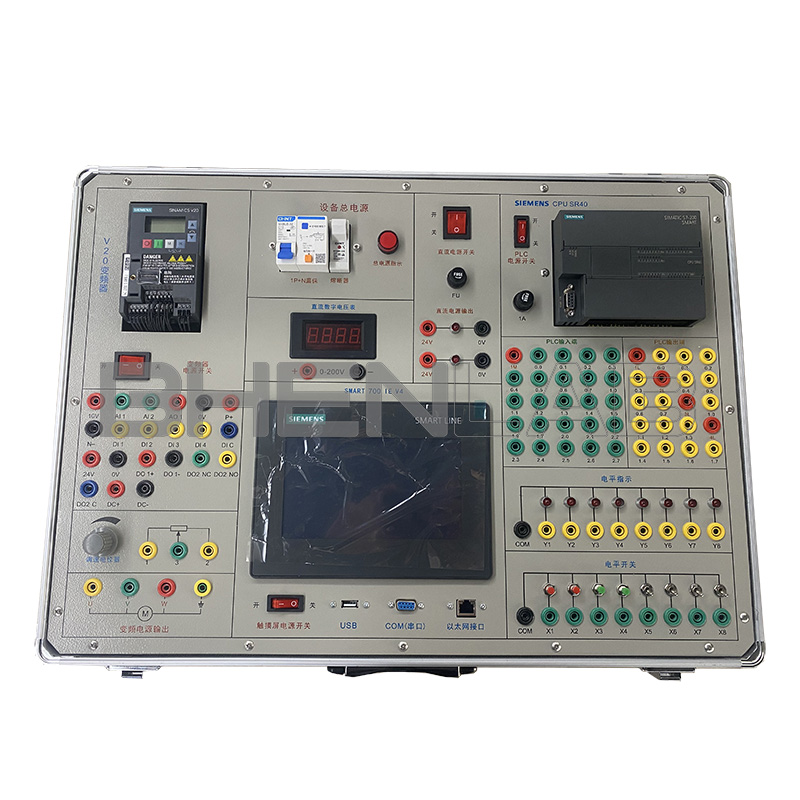

4. The PLC host adopts Siemens S7-200 Smart SR40 with 24 input points and 16 output points; relay output.
5. The inverter host adopts Siemens SINAMICS V20 6SL3210-5BB13-7UV1 0.37KW.
6. The touch screen adopts Siemens SMART 700 IE, 6AV6 648-0BC11-3AX0.
7. 180W three-phase asynchronous motor.

III. Experimental Content

• First type: Basic instruction experiments;
• Second type: Timer and counter instruction experiments;
• Third type: Shift register instruction experiments;
• Fourth type: Set/reset and pulse instruction experiments;
• Fifth type: Jump instruction experiments;
• Sixth type: Common function instruction experiments;

1. Automatic control of traffic lights;
2. Automatic control of manipulators;
3. Control of stage art lights;
4. Control of AC motor Y/△ starting (the motor simulates rotation through a small DC motor);
5. Automatic control of liquid mixing device (the mixer simulates rotation through a small DC motor);
6. Automatic control of water tower water level;
7. Simulated operation of four-stage conveyor belt;
8. Simulated operation of mail sorting system;
9. Assembly line control.

1. Installation and use of WINcc flexible configuration software;
2. Basic instruction programming practice experiment;
3. Configuration demonstration experiment;
4. Configuration variable definition and management experiment;
5. Configuration animation connection experiment;
6. User script program experiment;
7. Alarm display and alarm data report output experiment;
8. Control mode experiment based on touch screen.
